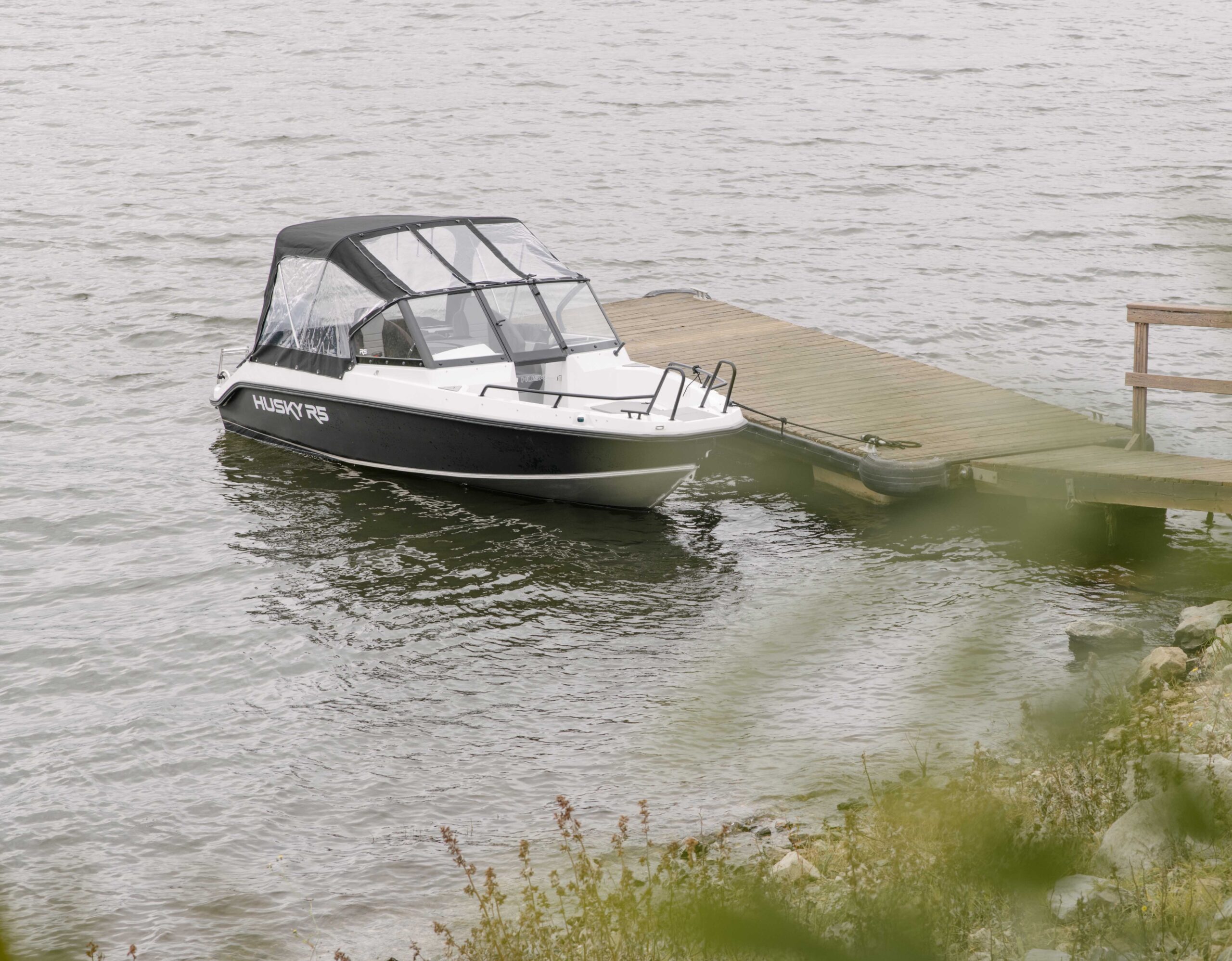

R5

  • Length / 5.60 m
  • Beam / 2.27 m
  • Engine / 60-100 hp
  • Persons / 6

R5 shines in ease
& versatility.

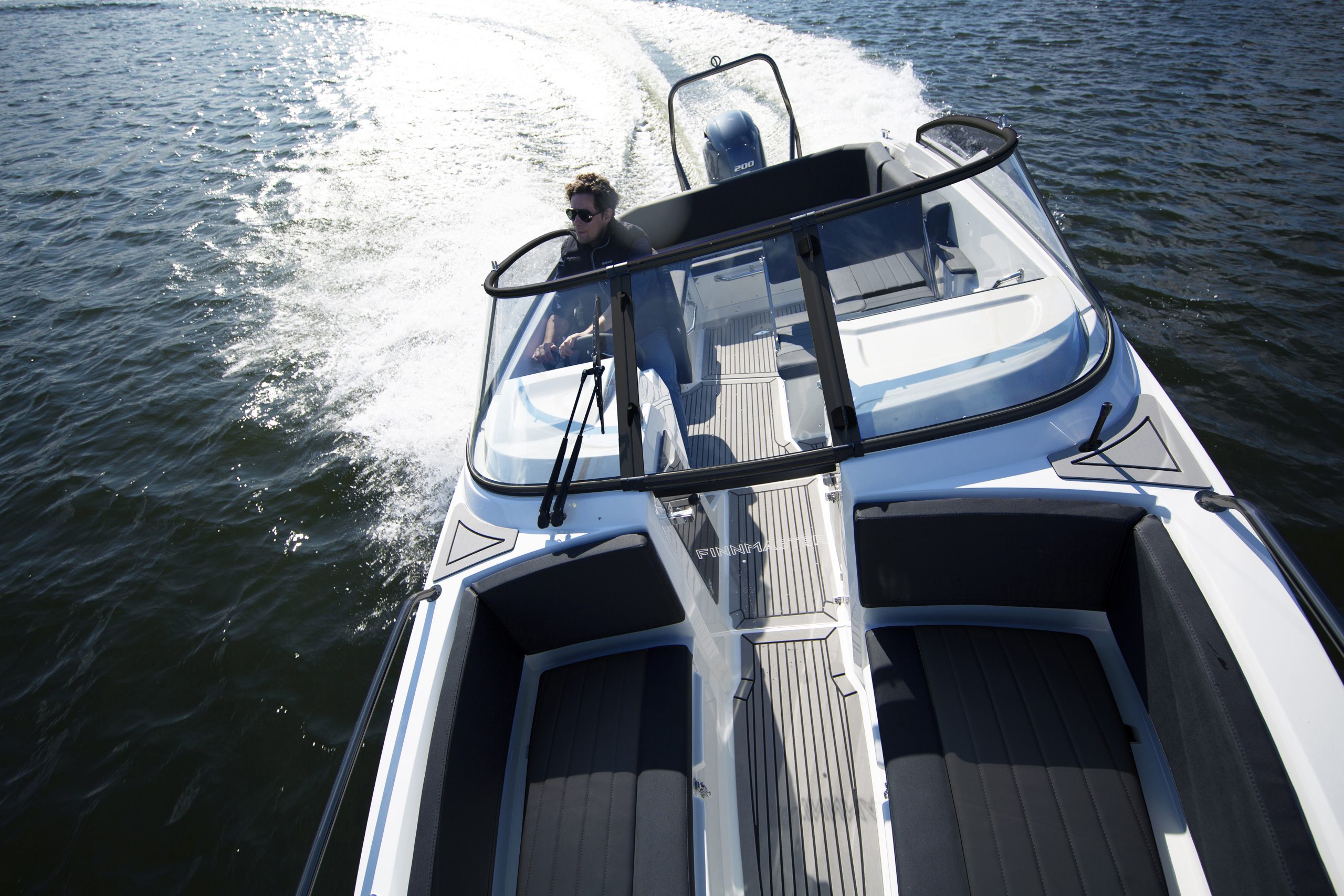

Sometimes, it feels good to make things easy for yourself. The Finnmaster R5 is then the boat for you. This bow rider is versatile and functions just as well for short connecting trips and transport to the summer cottage as for unforgettable summer days in the archipelago. Thanks to our Smart Design concept, the Finnmaster R5 is also very easy to use, which means the whole family can enjoy everything from fast water sports to gentle bathing trips in unexplored natural harbours.

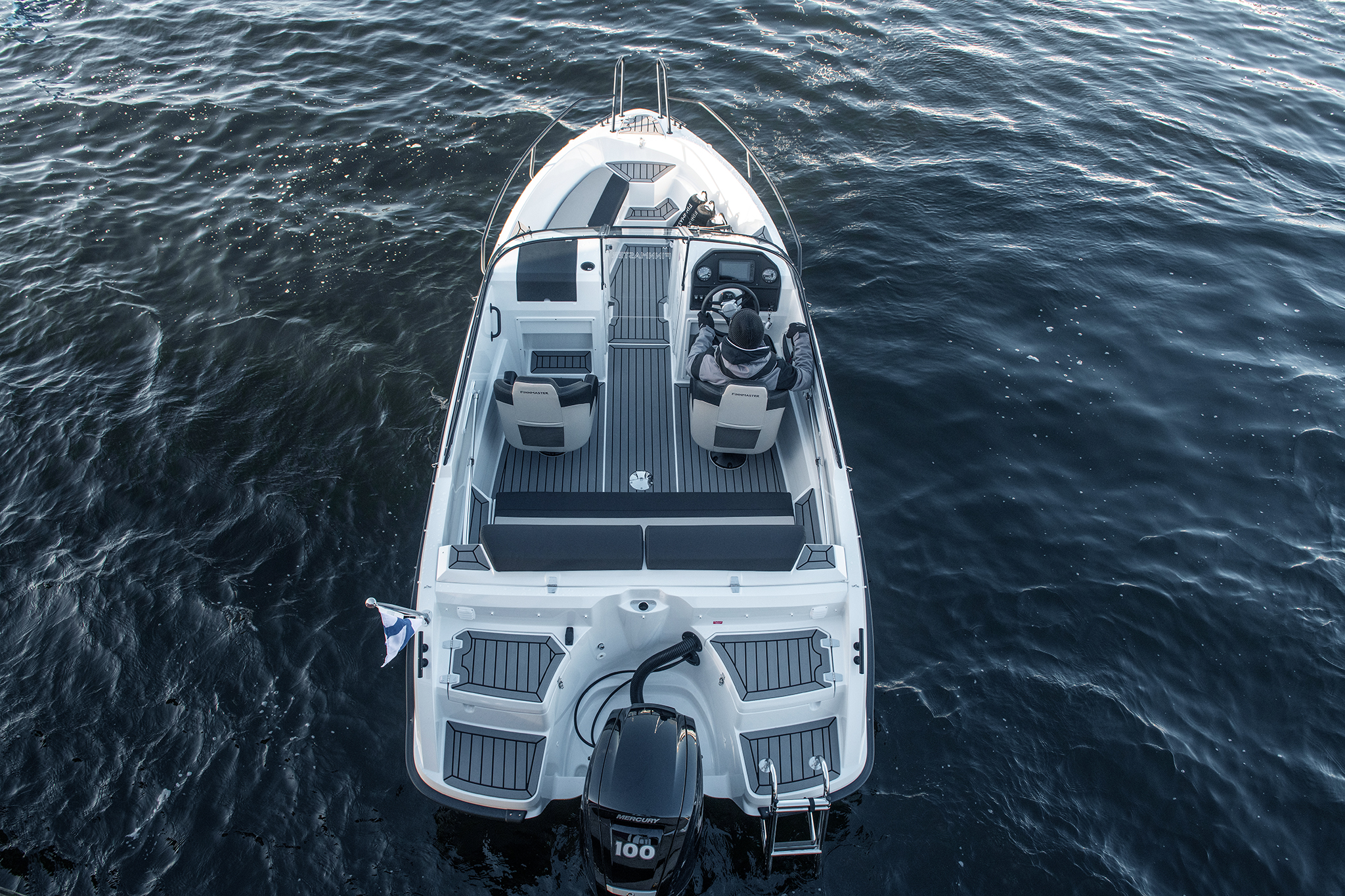

Layout and smart design

At Finnmaster, we have designed and manufactured boats at our boatyard in Finland for more than 30 years. Over these years, we have worked hard to develop smart solutions that, for example, mean there is always somewhere for you to stow the fenders, just seconds after casting off. Nor do you need to move the cushions when you want to stow anything in the storage space. We call our concept Smart Design. It means we tailor the form to the content to make life at sea easier – whatever you use your boat for. These solutions do not only help to tie together well thought-out and practical details with smart and modern design they mean above all that the skilled captain and the curious novice can both have wonderful experiences at sea.

Boat

Length 5.60 m
Beam 2.27 m
Draft (hull) 0.40 m
Weight 650 kg
Engine 60-100 hp
Persons 6
Fuel capacity 102 l
Deadrise Angle 18°

Equipments

Standard

Garmin ECHOMAP UHD72cv
Smart Deck on cockpit floor
Cushions, Silvertex
Rotating seats with slide rails
Covers for seats
Canopy
Canopy garage
Yamaha LAN -multidisplay, 2 pcs
Yamaha Y-COP security system
Windscreen wiper
Navigation lights
2 x USB output
Fire extinguisher
Bilge pump
Covered well for charts
1 cup holder
Unsinkable
Stainless steel handrails, black
Swim platforms & boarding ladder
3 anchor boxes
4 fender fittings
Fender basket
4 fenders, fender covers & ropes
Flagpole socket
White hull colour

Extra

Hydraulic steering
Trim tabs
Transport cover
Aft cockpit tonneau cover
Forward cockpit tonneau cover
Water skiing pole
Cockpit table

Edition 1

Cockpit tonneau cover rear
Cockpit table
Water skiing pole

Test facts

Yamaha F100FETL

Test results 2 persons
Test results 2 persons
Stats
Engine type F100FETL
Engine power 100 hp
Engine weight 162 kg
Engine year model 2017
Propeller type 6FP - Talon SDS
Propeller size 13 1/8 x 17-K
Propeller material Aluminium
Gear ratio 2.15:1
Air temperature +8 ºC
Results
RPM knots L/h L/n mile
5900 36.3 38.7 1.07
5500 34.5 30.7 0.89
5000 30.8 23.2 0.75
4500 26.8 17.7 0.66
4000 22.7 15.0 0.66
3500 18.5 12.8 0.69
3000 12.7 10.5 0.83
2500 7.4 7.8 1.05
2000 6.2 4.8 0.77
1000 3.5 2.0 0.57
500 2.6 1.2 0.46

Yamaha F70AETL

Test results 2 persons
Test results 2 persons
Stats
Engine type F70AETL
Engine power 70 hp
Engine weight 119 kg
Engine year model 2012
Propeller type Standard
Propeller size 13 5/8 x 14-K
Propeller material Aluminium
Gear ratio 2.33:1
Air temperature +3 ºC
Results
RPM knots L/h L/n mile
6100 27.2 23.0 0.85
6000 26.6 22.1 0.83
5500 23.4 18.2 0.78
5000 20.8 14.2 0.68
4500 17.6 11.0 0.63
4000 14.1 9.8 0.70

Layout

Videos

Sheets

Finnmaster R5 fact sheet (english)

Download
Finnmaster R5 fact sheet (english)
